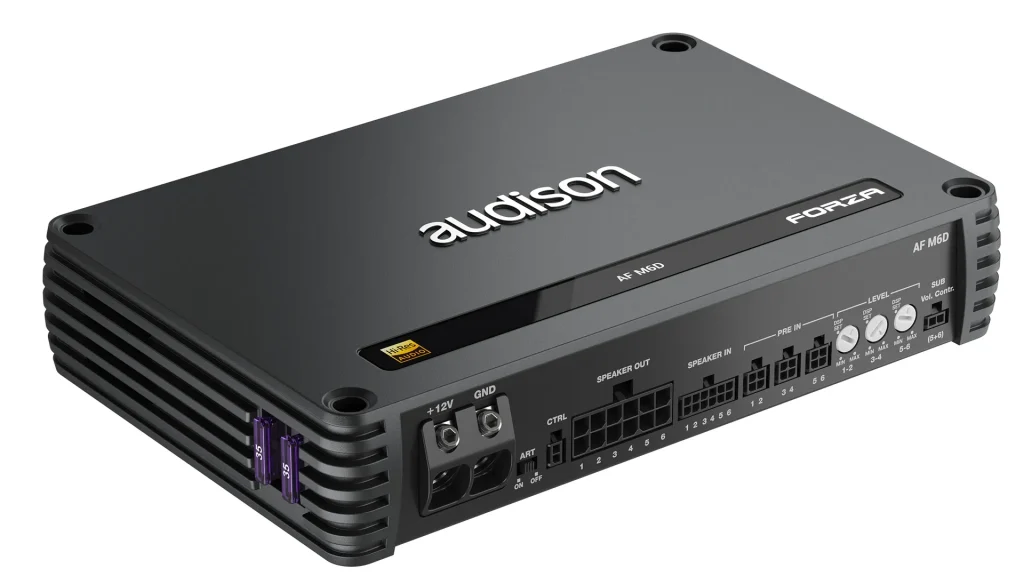

AF M6D Amplifier | 1320 W total power | 6 x 220 W @ 2ohm | D-class Fully Bridgeable
AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a “straight wire” architecture, without analog preamp functions such as crossover filtering, and are intended for use with external processors. AF M6D boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4Ω*, guaranteeing flexible and powerful performance.*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Nánari upplýsingar
Amplifier Tech Data
Channels
6
Class
D-Class
Efficiency
81 %
Hi Level Input
Yes
Low Level Input
Yes
Digital Input
No
Power supply voltage / fuse
11 ÷ 15 VDC
Operating power supply voltage
6.5 ÷ 17.5 VDC
Idling current
1 A
Idling current when off
0.009 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power
60 A
Remote OUT
6.5 ÷15 VDC (150 mA)
Remote IN
4 ÷15 VDC (1 mA)
ART – Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)
1.5 VDC
Amplifier Stage
Distortion – THD @ 100 Hz, 4Ω, 70% Rated Power
0.04%
Bandwidth A
(-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 42 kHz
S/N ratio A
(A weighted @ 1 V): 103 dBA
Damping factor A
(100 Hz, 4Ω, 2 VRMS): 160
Input sensitivity Pre-In
0.6 ÷ 6 VRMS
Input sensitivity Speaker-In
2.2 ÷ 22 VRMS
Total Power RMS
1320 W
Minimum load impedance
6 Ch 2Ω
3 Ch – (Bridge) 4Ω
Output Power (RMS) @14.4 VDC, 1% THD
6 Ch @ 4Ω: 135 W x 6
6 Ch @ 2Ω: 220 W x 6
3Ch (Bridge 1/2; 3/4; 5/6) @ 4Ω: 440 W x 3
Audison Forza AF M6D – HI-RES 6 rása magnari – 6x135w RMS @4ohm
