Bakkmyndavél í Mercedes Benz Sprinter (W906/907/910)/VW Crafter)

Reversing Camera for Mercedes Sprinter and VW Crafter

General Description

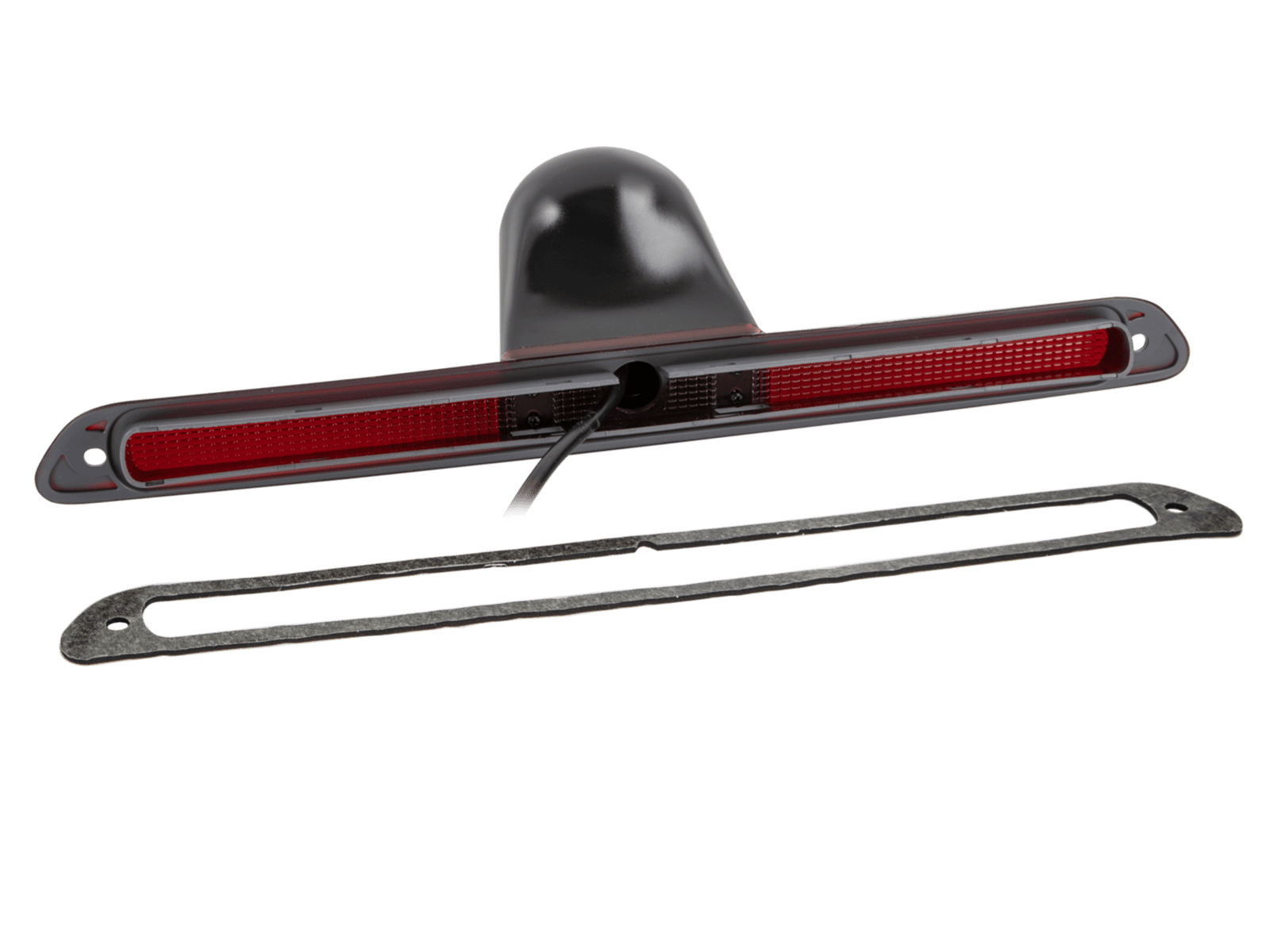

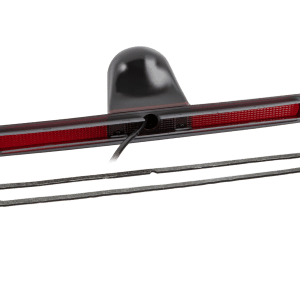

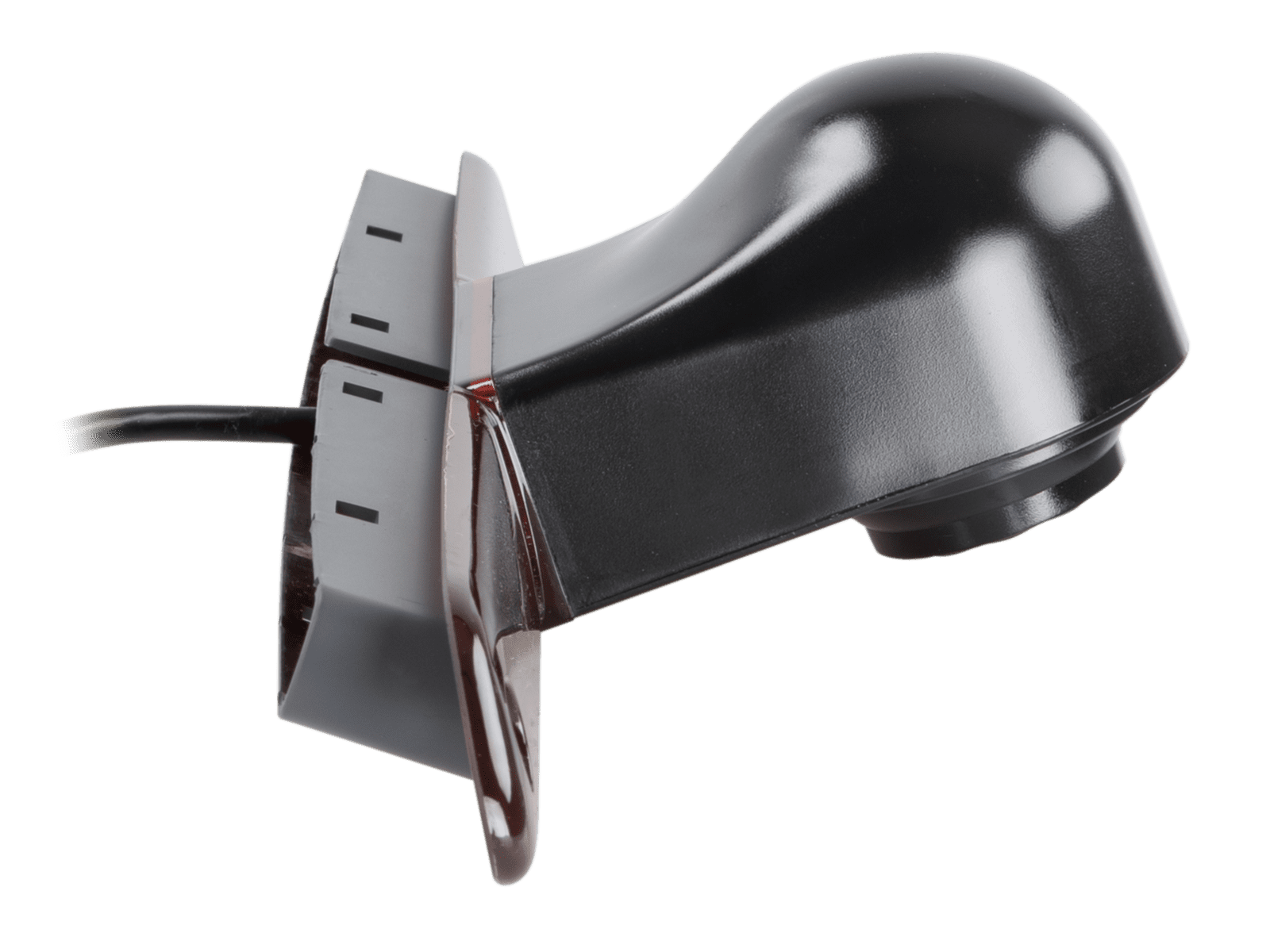

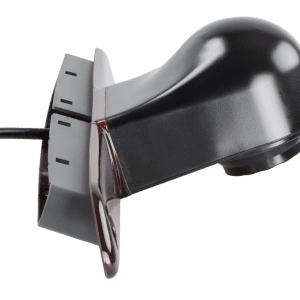

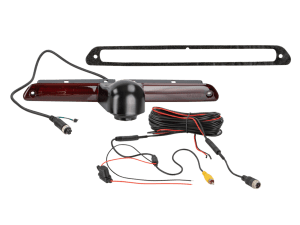

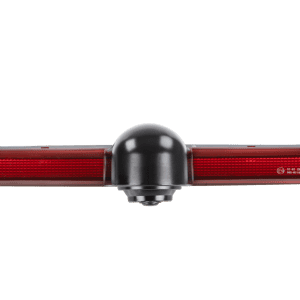

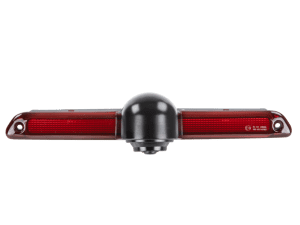

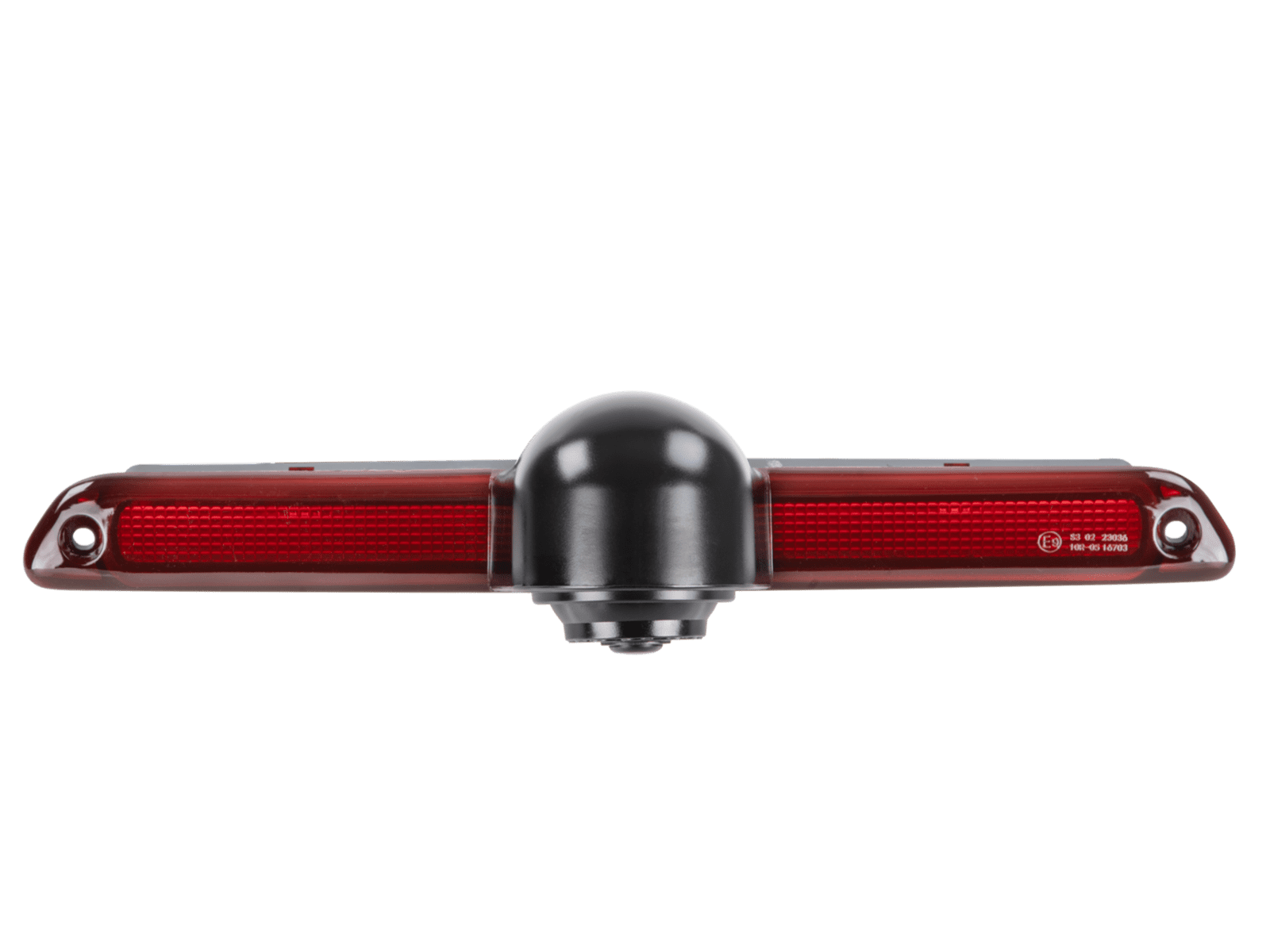

This reversing camera is specifically designed for the Mercedes Sprinter (W906/907/910) and VW Crafter models. It replaces the 3rd brake light, providing seamless integration into the vehicle design.

Main Features

• Easy replacement of the 3rd brake light
• Guidelines for better distance estimation

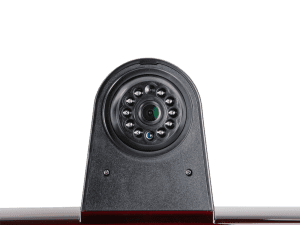

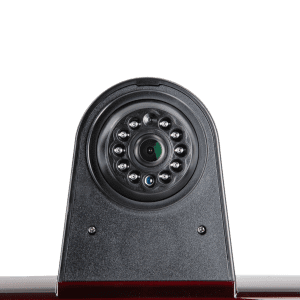

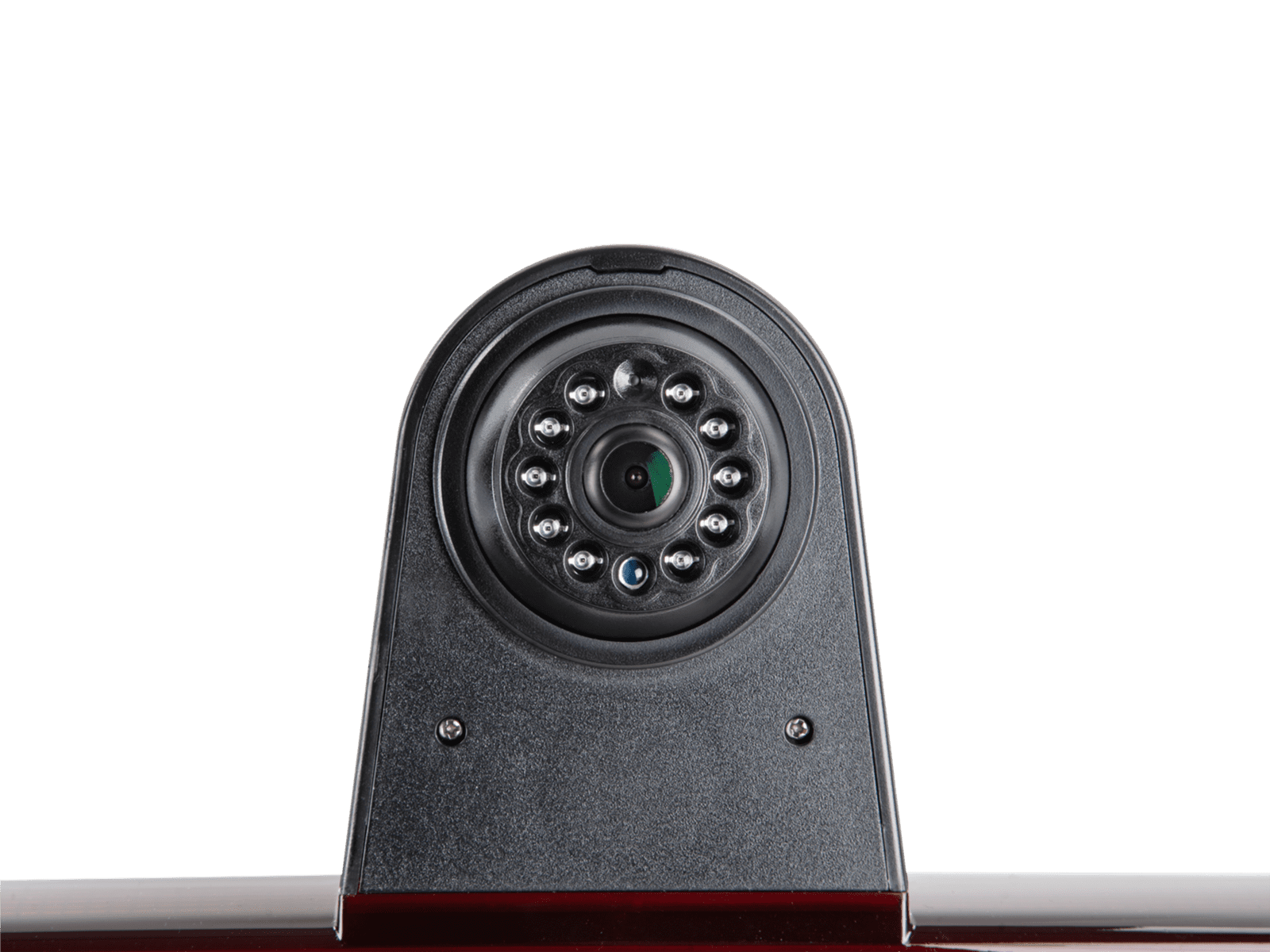

• Night vision function for safe reversing in the dark
• Adjustable viewing angle of 20° for optimal visibility

Benefits for Automotive Mechatronics Technicians

This reversing camera not only offers easy installation but also significantly improves safety when reversing. The night vision function and guidelines facilitate maneuvering in tight spaces and low light conditions.

• Camera operating voltage: +12V
• Camera supply voltage: +12V
• Construction: Plastic
• Color: black / red
• Extras: Guide lines via jumper, night vision function, adjustable viewing angle 20°
• Sensor type: 1/3″ CMOS
• Image system: NTSC color
• Effective pixels: 976 x 592
• Lens: 1.9mm / F 2.0
• Min. Lux: 0 Lux with night vision function
• Resolution: 600 TV lines
• Lens angle: diagonal 160°
• Viewing angle: horizontal 115°, vertical 75° +5°
• Dust and water protected: IP68
• Operating voltage: +12V DC
• Supply voltage: +12V DC
• Current consumption: 200mA with active night vision function
• Operating temperature range: -30°C – 75°C
• Storage temperature: -40°C – 80°C
• Dimensions: OEM brake light

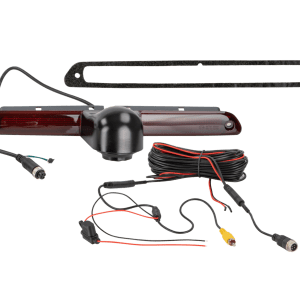

Connections

• Connection: red: +12V switched load-stable secured, black: chassis ground direct/GND, Cinch(m) yellow: Video
• Cable loop: green: activate/deactivate guide lines

Camera Connections

• Connection: 4 Pin acv system connector(m)
• Connection cable at the camera 1m +/-: 4 Pin system connector(m), 1 jumper

Adapter Connections

• Connection adapter: 4 Pin system connector(f) / 4 Pin acv system connector(m) Ø5.2mm

Extension Connections

• Extension 6.5m +/-: 4 Pin acv system connector(f) Ø10mm / 4 Pin acv system connector(m) Ø5.2mm
• Power line red 3m +/- wired through: Connection to camera / connection to reversing light to monitor
• Ground line/GND black 3m +/- wired through: Connection to chassis ground/GND to camera / connection to chassis ground/GND direct to monitor

Cable Connections

• Connection cable 20cm +/-: 4 Pin acv system connector(f) Ø10mm, red: supply voltage, black: ground/GND, Cinch(m) yellow: Video
