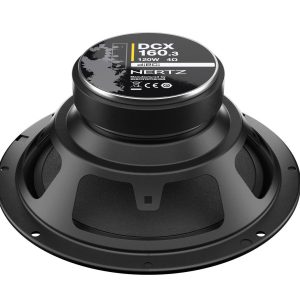

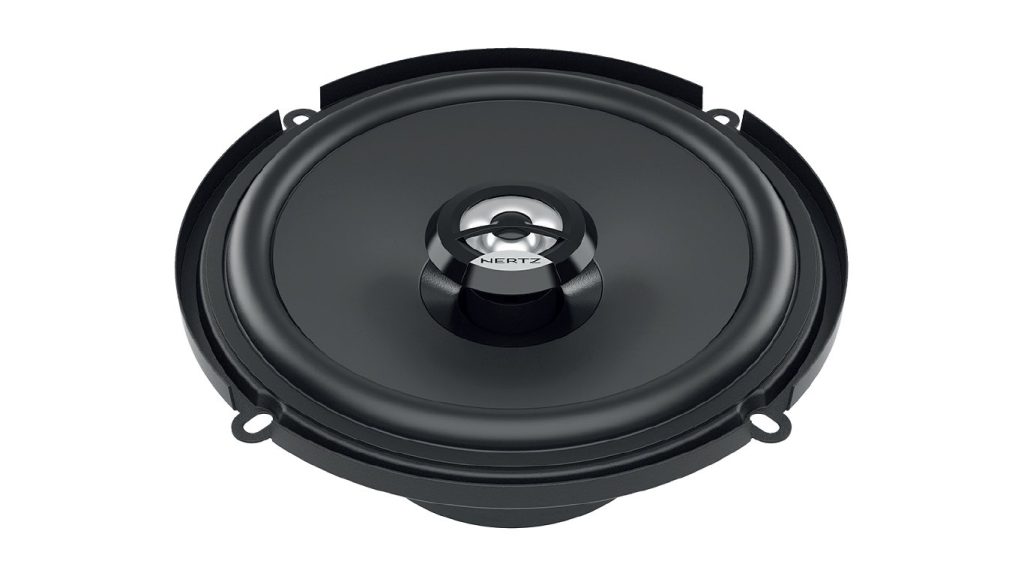

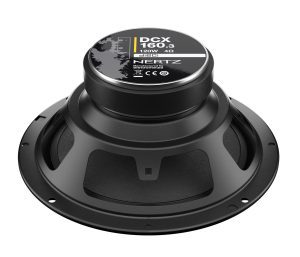

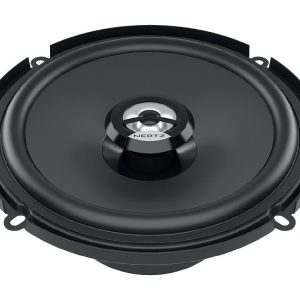

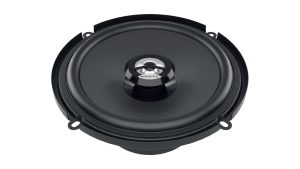

Hertz Dieci DCX 160.3 – 6″ Coaxial hátalara par 120 W
22.990kr.
Availability: Til á lager
- Skilmálar
- Afhending
Upplýsingar
Nánari upplýsingar
Myndband
Upplýsingar
DCX 160.3160 (6) mm (in.) |
Nánari upplýsingar
To meet all installation needs, without giving up on Hertz quality and performance, Hertz DCX 160.3 Dieci series car audio coaxial is designed with maniacal care to provide linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact. The new Hertz Dieci DCX 160.3 6” coaxial includes an adaptor ring designed for installation in GM and Honda models with 6” OEM speakers.
| Component | Two way coaxial |
| Size mm (in.) | 160 (6) |
| Power Handling – Continuous W | 60 |
| Power Handling – Peak W | 120 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 66.5 (2.62) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Frequency Response Hz | 50 ÷ 21k |
| Woofer Magnet size D x d x h mm (in.) | 80 x 40 x 15 (3.1 x 1.6 x 0.6) |
| Weight of one speaker kg (lb.) | 0,75 (1.65) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Water-repellent pressed paper |
| Dome | PEI |
| D mm | 124 |
| Re Ohm | 3,2 |
| Fs Hz | 70 |
| Le mH | 0,18 |
| Vas I | 10,32 |
| Mms g | 10 |
| Cms mm/N | 0,52 |
| BL T*m | 4,50 |
| Qts | 0,62 |
| Qes | 0,69 |
| Qms | 6,3 |
| Spl dB | 93 |
Physical Specs
| A | 167 mm (6.57 in.) |
| B | 127 mm (5 in.) |
| C | 66,5 mm (2.62 in.) |
| D | 56,5 mm (2.22 in.) |
