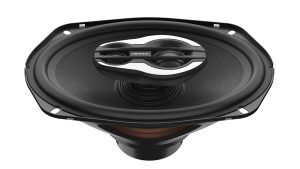

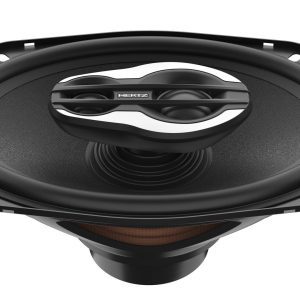

Hertz SX 690.1 NEO SPL
39.990kr.
Sérpöntun – hringdu eða sendu okkur skilaboð, við finnum bestu lausnina fyrir bílinn þinn.
- Skilmálar
- Afhending
SX 690.1 NEO

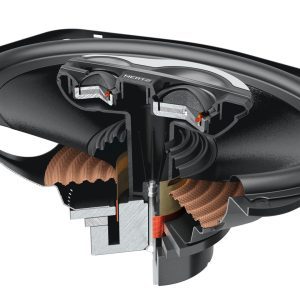

in. 6 x 9 mm (in.) |SX 690.1 NEO is a real beast with a Hi-SPL Mid-Hi unit based on a 1.4” dome tweeter and 1” dome super tweeter with a resettable solid-state protection circuit. Cone is made with nature-proof high stiffness pressed paper featuring innovative water/humidity resistance and anti-UV treatments. The double-layer copper voice coil wound on polyimide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.

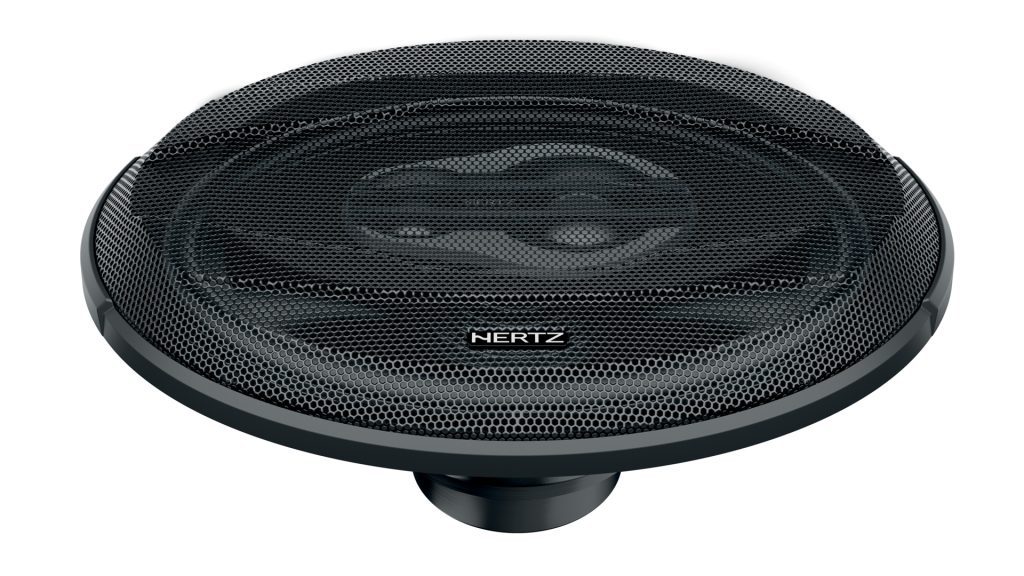

The provided MPG 690 grille is made of a high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.6. Provided elegant grille made with a high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.
Technical Specs| Component | SPL COAXIAL |
| Size mm (in.) | in. 6 x 9 |
| Power Handling – Continuous W | 130 |
| Power Handling – Peak W | 260 |
| Impedance Ohm | 4 |
| Tweeter diaphragm mm (in.) | 29 (1.14) |
| Woofer Voice Coil Ø mm (in.) | 38 (1.5) |
| Tweeter Voice Coil Ø mm (in.) | 25 (1) |
| Frequency Response Hz | 65 ÷ 24k |
| Woofer Magnet size D x d x h mm (in.) | 110 x 45 x 20 (4.33 x 1.77 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 24,5 x 6 x 3,5 (0.96 x 0.24 x 0.14) |
| Weight of one speaker kg (lb.) | 1,69 (3.73) |
| Woofer Magnet | Special Neodymium N38 H |
| Tweeter Magnet | Special Neodymium N38 H |
| Cone | Water repellent pressed paper |
| Dome | Tetolon |
| D mm | 169 |
| Xmax mm | 5,5 |
| Re Ohm | 3 |
| Fs Hz | 65 |
| Le mH | 0,4 |
| Vas I | 11,29 |
| Mms g | 36,1 |
| Cms mm/N | 0,16 |
| BL T*m | 7,665 |
| Qts | 0,62 |
| Qes | 0,78 |
| Qms | 2,9 |
| Spl dB | 94 |
| A | 237,5 mm | 9.35 in. |
| B | 225 mm | 8.86 in. |
| C | 93 mm | 3.66 in. |
| D | 85 mm | 3.35 in. |
| E | 163 mm | 6.42 in. |
| F | 154 mm | 6.06 in. |
Skyldar vörur
Upprunalegt verð var: 39.990kr.31.990kr.Núverandi verð er: 31.990kr.
Hertz SX 690.1 NEO SPL
SX 690.1 NEO
in. 6 x 9 mm (in.) |
SX 690.1 NEO is a real beast with a Hi-SPL Mid-Hi unit based on a 1.4” dome tweeter and 1” dome super tweeter with a resettable solid-state protection circuit. Cone is made with nature-proof high stiffness pressed paper featuring innovative water/humidity resistance and anti-UV treatments. The double-layer copper voice coil wound on polyimide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.
The provided MPG 690 grille is made of a high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.
39.990kr.
Sérpöntun – hringdu eða sendu okkur skilaboð, við finnum bestu lausnina fyrir bílinn þinn.
SX 690.1 NEO
in. 6 x 9 mm (in.) |
SX 690.1 NEO is a real beast with a Hi-SPL Mid-Hi unit based on a 1.4” dome tweeter and 1” dome super tweeter with a resettable solid-state protection circuit. Cone is made with nature-proof high stiffness pressed paper featuring innovative water/humidity resistance and anti-UV treatments. The double-layer copper voice coil wound on polyimide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.
The provided MPG 690 grille is made of a high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.
Sérpöntun – hringdu eða sendu okkur skilaboð, við finnum bestu lausnina fyrir bílinn þinn.
Hertz SX 690.1 NEO SPL
Features
1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.
2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
3. Unparalleled power handling delivered by the double-layer copper voice coil, wound on polyimide former.
4. Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome super tweeter with resettable solid-state tweeter protection circuit.
5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with the most common motorcycle connections.
6. Provided elegant grille made with a high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.
Technical Specs
| Component | SPL COAXIAL |
| Size mm (in.) | in. 6 x 9 |
| Power Handling – Continuous W | 130 |
| Power Handling – Peak W | 260 |
| Impedance Ohm | 4 |
| Tweeter diaphragm mm (in.) | 29 (1.14) |
| Woofer Voice Coil Ø mm (in.) | 38 (1.5) |
| Tweeter Voice Coil Ø mm (in.) | 25 (1) |
| Frequency Response Hz | 65 ÷ 24k |
| Woofer Magnet size D x d x h mm (in.) | 110 x 45 x 20 (4.33 x 1.77 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 24,5 x 6 x 3,5 (0.96 x 0.24 x 0.14) |
| Weight of one speaker kg (lb.) | 1,69 (3.73) |
| Woofer Magnet | Special Neodymium N38 H |
| Tweeter Magnet | Special Neodymium N38 H |
| Cone | Water repellent pressed paper |
| Dome | Tetolon |
Electro-acoustic Specs
| D mm | 169 |
| Xmax mm | 5,5 |
| Re Ohm | 3 |
| Fs Hz | 65 |
| Le mH | 0,4 |
| Vas I | 11,29 |
| Mms g | 36,1 |
| Cms mm/N | 0,16 |
| BL T*m | 7,665 |
| Qts | 0,62 |
| Qes | 0,78 |
| Qms | 2,9 |
| Spl dB | 94
|
Physical Specs
| A | 237,5 mm | 9.35 in. |
| B | 225 mm | 8.86 in. |
| C | 93 mm | 3.66 in. |
| D | 85 mm | 3.35 in. |
| E | 163 mm | 6.42 in. |
| F | 154 mm | 6.06 in. |
Frequency response
Bæklingur (Owner's Manual)
https://hertz-audio.zendesk.com/hc/en-gb/articles/6880743614865-Download-Manual-Comp-SPL-Show
Frequency response Diagram
https://static.hertz-audio.com/media/2021/04/Hertz_SX_690_NEO_Fc-1.png
